CS Cone Crusher

Introduction of CS Cone Crusher

The CS cone crusher is widely used for the construction aggregate and sand production process, especially for the basalt and granite hard rock. It is high efficiency and low investment cost. The crushing final product is with good shape and quality.

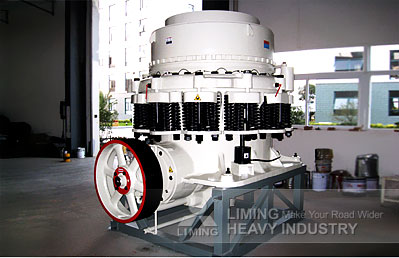

CS Series Cone Crusher

Features of CS Cone Crusher

1)        High crushing efficiency and low investment cost

The machine production is highly improved with the optimized cavity, reasonable combination of speed and stroke. It is reliable and low cost invested. The crushing adopts lamination crushing principle, which will guarantee the cubic epigranular output and better gradation.

2)        easy operation and maintenance

All the parts can be dissembled from one side or top part, which is easy for the dissembling of mantle and concave. The hydraulic cavity clean system will guarantee the fast clean process, which will cut the shutting down time for the machine

3)        reliable operation

The big diameter shaft and heavy frame design make sure the reliable, sturdy and durable for the machine. The multi-spot control and isolated thin oil lubrication system will make sure the double protection for the bearing.  The iron protection and automated control system will make the machine safely protect itself.

Specifications of CS Cone Crusher

  • Standard



    Model Dia. mm (feet) Cavity Feed Opening Outlet Setting (mm) Shaft Speed (r/min) Power (kw) Capacity (t/h) Weight (t) Dimension (mm)
    Closing Side (mm) Open Side (mm)
    CSB75 900 (3′) Fine 83 102 9-22 580 75 45-91 15 2821×1880×2164
    Coarse 159 175 13-38 59-163
    CSB160 1295 (4 1/4′) Fine 109 137 13-31 485 185 109-181 27 2800×2342×2668
    Medium 188 210 16-38 132-253
    Coarse 216 241 19-51 172-349
    CSB240 1650 (5 1/2′) Fine 188 209 16-38 485 240 181-327 55 3911×2870×3771
    Medium 213 241 22-51 258-417
    Coarse 241 268 25-64 299-635
    CSB315 2134 (7′) Fine 253 278 19-38 435 315 381-726 110 4613×3251×4732
    Medium 303 334 25-51 608-998
    Coarse 334 369 31-64 789-1270



    Short Head



    Model Dia. mm (feet) Cavity Feed Opening Outlet Setting (mm) Shaft Speed (r/min) Power (kw) Capacity (t/hour) Weight (t) Dimension (mm)
    Closing Side (mm) Open Side (mm)
    CSD75 914 (3′) Fine 13 41 3-13 580 75 27-90 15 2821×1880×2410
    Coarse 33 60 3-16 27-100
    CSD160 1295 (4 1/4′) Fine 29 64 3-16 485 160 36-163 27 2800×2342×2668
    Medium 54 89 6-16 82-163
    Coarse 70 105 10-25 109-227
    CSD240 1676 (5 1/2′) Fine 35 70 5-13 485 240 90-209 55 3917×2870×3771
    Medium 54 89 6-19 136-281
    Coarse 98 133 10-25 190-336
    CSD315 2134 (7′) Fine 51 105 5-16 435 315 190-408 110 4130×3251×4454
    Medium 95 133 10-19 354-508
    Coarse 127 178 13-25 454-599



    Note:Any change of technical data shall not be advised additionally.
