HPC Hydraulic Cone Crusher

Introduction of HPC Hydraulic Cone Crusher

Cone crusher is mainly used in metal mining, construction sand crushing and processing of second and third sections of broken links, because of the high crushing capacity, large production, and then HPC cone crusher production line is used for river stone and other medium hard stone.

In addition, HPC hydraulic cone crusher is safe enough, and the content of 0-8mm gravel of the final product is very high, and has great advantage in actual use, the whole production line is stable, good shape, fully according to the requirement of the construction sand, and enjoy a high praise among customers.

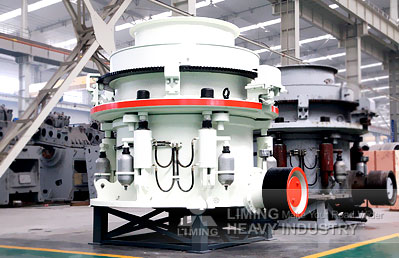

HPC Hydraulic Cone Crusher

Features of HPC Hydraulic Cone Crusher

1)      Energy efficient and environment friendly

With fixed main shaft, a small spherical structure optimization reciprocal axis, it can reach higher than the old spring cone crusher efficiency by 5% -15%.

2)      Increase in production

The crushing stroke, crushing speed and crushing cavity design contribute to the increase of the capacity of 35% -60% comparing with the old spring cone crusher

3)      More uniform size.

Using the unique laminated crushing principle produce crushing effect between particles, reducing flakiness stones, more uniform size.

4)      Stable running

When the unbroken material go into the cavity, the protect device will discharge it and then reposition quickly.

5)      Application environment

a. HPC is a new hydraulic cone crusher, more secure and stable operation, easy maintenance; downtime is short, guaranteed yield, more suitable for large-scale sand and gravel production systems.

  1. HPC cone crusher adopts multi-point split hydraulic lubrication control system, bearing lubrication and overload capability is stronger, so that the degree of automation of the entire production line is greatly improved.

c. HPC cone crusher cavity and the stroke has been re-experimental design, more suitable for crushing river stone, basalt, iron ore and other hard materials and  the production increased by 35% -60% than ordinary spring cone crusher.

Specifications of HPC Hydraulic Cone Crusher

Type Cavity (coarse/fine) Outlet adjustment range (mm) Feed size (mm) Capacity (t/h) Power (kW) Weight (t) movable cone diameter (mm)
HPC-160 C 12-20 135 100-200 160 13 950
F 5-20 76 55-150
HPC-220 C 15-38 185 150-300 220 18.5 1160
F 6-25 110 70-180
HPC-315 C 19-45 265 190-400 315 26 1400
F 9-30 150 100-200
HPC-400 C 25-50 320 250-500 400 33 1500


Note:Any change of technical data shall not be advised additionally.
