Impact Crusher Machine

Introduction of Impact Crusher Machine
Impact crusher is ideally suitable as secondary crusher for material with compression strength less than 350Mpa, and the length of side within 500 mm. It is widely used in mining, railway, highway, highway, building material, and water conservancy, etc. This kind of impact crusher is designed by adopting the advanced technology in home and abroad, which is the new impact crusher with the latest technology.

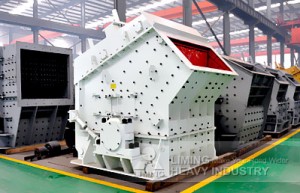

Impact Crusher

Features of Impact Crusher Machine
1).Unique structure: Keyless connection, strong rigidity, big inertia of the rotor. Besides, this kind of machines also has high chromium plate hammer, impact resistance, resistance to wear and tear.
2). High efficiency and energy saving: Feed material hole is big, high crushing cavity, multi crushing function, high production efficiency, small abrasion of hard rock, high comprehensive benefit.
3). Beautiful shape of final product: cubic shape product, good particle shape. Adjustable particle size, simplified crushing process.

Specifications of Impact Crusher Machine

Model Size of rotor (mm) Feed opening (mm) Max. feed size (mm) Capacity (t/h) Power of Motor (kW) Weight (t) Overall Dimensions (mm)
PF1010 Φ1040×1000 510×1040 200 50-90 75 12.5 2455×2090×2800
PF1210 Φ1260×1050 465×1155 250 70-130 110 16.5 2582×2410×2810
PF1214 Φ1260×1400 465×1485 300 90-180 132 19 2582×2052×2810
PF1315 Φ1280×1500 700×1540 300 120-250 200 24 2930×2765×3053



Note:Any change of technical data shall not be advised additionally.
