Mobile Primary Jaw Crusher

Mobile Primary Jaw Crusher, launched by Liming Heavy Industry(Shanghai), the world leader in rock and mineral processing, is a new, comprehensive portable plant series for efficient fully mobile crushing, and screening applications.

The Mobile Primary Jaw Crusher concept is fully adaptable to all mobile crushing needs, opening up a whole new range of business opportunities for contractors, quarry operators, recycling and mining applications.

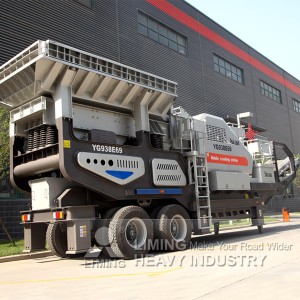

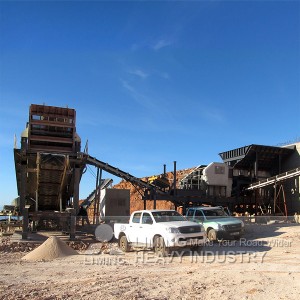

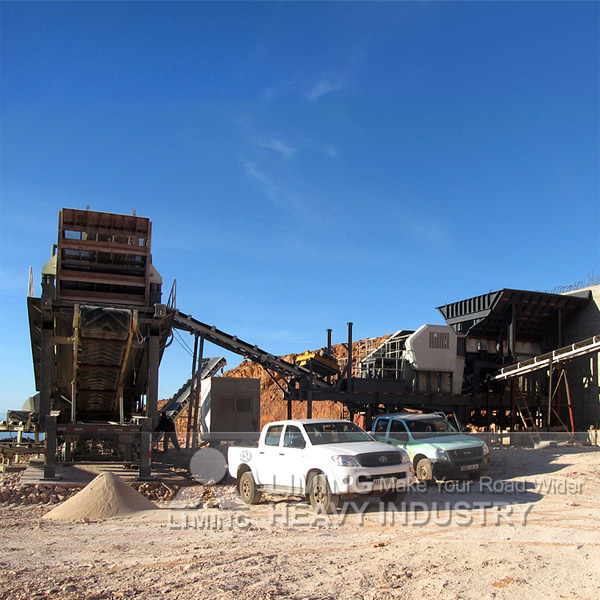

Mobile Primary Jaw Crusher Mobile Primary Jaw Crusher (2)

Flexible operation – from coarse to fine crushing and screening
The portable jaw crusher plant can be operated as independent units or as a two- or three-stage crushing application: from primary to secondary, tertiary and fine crushing. As required, a portable screen can be attached to the process.

Built around proven quality crushers
Mobile Primary Jaw Crushers are built around the proven Liming Heavy Industry(Shanghai) crushers, which are respected world-wide for the engineering quality, crushing efficiency, versatility and cost effectiveness. Lightweight and superior in engineering design, these crushers offer exceptional crushing performance. They are ideally suited to the most demanding portable crushing and screening applications.

Take a closer look at Liming Heavy Industry(Shanghai)’s Mobile Jaw Crushing Plant – it offers new possibilities in mobile crushing – always at the lowest cost per ton.

Specifications of Mobile Primary Jaw Crusher:

Technical Data//Model YG938E69 YG1142E710 YG1349E912 YG1349EW86 YG1349EW110
Transportation size(mm) 11900×2550×3650 13500×2550×4300 15200×2950×4450 14600×2750×4350 15200×2800×4900
Weight(t) 35 52 80 59 85
Tire Configuration Dualaxial Triaxial Triaxial Triaxial Triaxial
Jaw Crusher PE600×900 PE750×1060 PE900×1200 PEW860 PEW1100
The Maximum Feeding Size(mm) 480 630 750 730 940
Discharge Opening Size(mm) 65~160 80~140 100~200 75~225 150~275
Capacity(t/h) 90~180 110~320 220~450 150~500 300~650
Vibrating Feeder GZD960×3800 GZD1100×4200 GZD1300×4900 GZD1300×4900 GZD1300×4900
Main Belt Conveyor B800×8.5M B1000×9M B1200×9.5M B1200×9.5M B1200×9.5M
Side Belt Conveyor (optional) B450×3M B500×3.5M B650×4M B650×4M B650×4M
Electric control standard control box + control panel control box + control panel control box + control panel control box + control panel control box + control panel
optional Control box + LCD Control box + LCD Control box + LCD Control box + LCD Control box + LCD
Hydraulic leg standard 4 4 4 4 4
optional 2 2 2 2 2
Hydraulic cylinder standard 4 4 4 4 4
optional 5 5 5 5 5
Genset (optional)(Kw) 180 250 250 270 380
Iron Separator (optional) (Kw) RCYD(C)-8 RCYD(C)-10 RCYD(C)-12 RCYD(C)-12 RCYD(C)-12

Note:Any change of technical data shall not be advised additionally.
