MTW European Type Trapezium Grinding Mill

Introduction of MTW European Type Trapezium Grinding Mill

MTW European Type Trapezium Grinding Mill is the newest grinding equipment which enjoys many patented technology and reaches the international advanced level. Our research team designs the up-to-date grinding mill by absorbing the latest European grinding technology and ideas. The mill enjoys several patent technologies, such as bevel gear overall drive, inner automatic Thin-Oil lubricating system, arc air channel, etc.

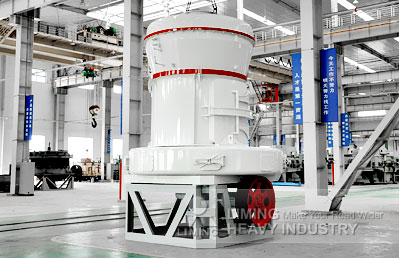

MTW European Trapezium Mill

Features of MTW European Type Trapezium Grinding Mill

1) Adjustable output fineness, high separation efficiency

2) Cambered shovel with renewable edge and special designed grinding roller & grinding ring can ensure high grinding efficiency and low cost.

3) Linkage pressurization grinding roller

4) Environmental protection, low noise and less dust pollution

5) Arc air channel, less air resistance

6) Advanced and reliable inner automatic thin-oil lubrication system

7) Bevel gear overall drive easy to be installed and more efficiency

Specifications of MTW European Type Trapezium Grinding Mill

  • Table 1



    Model Specification Name MTW110 MTW138 MTW175 MTW215
    Quantity of roller (PCS) 4 4 5 5
    Inner diameter of ring (mm) Ф1100 Ф1380 Ф1750 Ф2150
    Rotary speed of main frame(r/min) 120 96 75 65
    Max. Feeding size(mm) < 30 < 35 < 40 <50
    Output size (mm) 1.6~0.045 The fineness is 0.038 1.6~0.045 The fineness is 0.038 1.6~0.045 The fineness is 0.038 1.6-0.055 The fineness is 0.045
    capacity (t/h) 3.5~10 6.5~15 11~25 20-50
    Overall dimension (mm) 8910×6950×9010 10920×9655×10227 12095×10023×9916 14500x11200x10400
    Total weight (t) 18 28.5 46 96



    Table 2



    Name Item Unit Specifications & Technical Data
    MTW110 MTW138 MTW175 MTW215
    Motor for mainframe Model YX3-280M-6 YX3-315M-6 Y2-355M2-8 Y3-400-8
    Power kW 55 90 160 280
    Rev. rpm 980 990 740 740
    Adjustable speed motor for classifier Model YVP160M-6 YVP200L2-6 YVP250M-6 YVP280M-4
    Power kW 7.5 22 37 90
    Rev rpm 1440 980 980 1470
    Motor for centrifugal blower Model YX3-250M-4 YX3-315S-4 YX3-315L2-4 YX3-355L2-4
    Power kW 55 110 200 315
    REV rpm 1480 1480 1480 1480
    Accessary equipment Bucket Elevator Model TH250x8m TH315x8.5m TH315x10.5m TB315x11.5m
    Motor model YX3-100L2-4 YX3-112M-4 YX3-112M-4 YX3-160M-4
    Power kW 3 4 4 11
    Rev rpm 1420 1440 1480 1440
    Jaw Crusher Model PE PE250×400 PE250×400 PE250×750 PC1010
    YX3-180L-6 YX3-180L-6 YX3-200L2-6 YX3-315L1-6
    Power KW 15 15 22 110
    REV rpm 970 970 970 990
    Feeder Model GZ2F GZ3F GZ4F GZ5F
    Power KW 0.15 0.2 0.45 0.65





    Note:Any change of technical data shall not be advised additionally.
