Ceramic filter

Author: crusher_manufacturer March 24, 2014 0 Comments

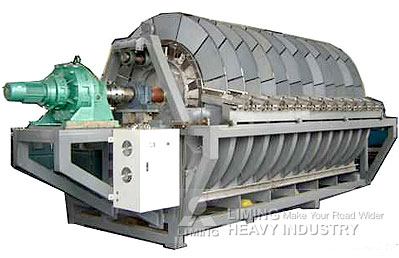

Introduction of Ceramic Filter

The ceramic filter is integrating electromechanical,porous ceramics and ultrasonic technology.What is a filtration equipment relies on vacuum suction and capillary action to achieve solid-liquid separation.With high filtration efficiency,low production cost,energy saving,environment protection.Applicable to materials fineness 200-450 mesh and various ultrafine materials. It can be widely used in metallurgy, mineral processing and other industries,what is the world’s most advanced products of solid-liquid separation.

Features of Ceramic Filter

1. Excellent chemical stability, resistant to acid, alkali, resistance to oxidation;
2. High resistance to high temperature, high voltage, large over current and high filter precision;
3. Resistant to organic solvents;
4. Longer life compared with the organic film;
5. Easy to clean, available online pharmaceutical or high-temperature sterilization, reverse flush.

Specifications of Ceramic Filter

• TC Spiral Classifier specification:

  Type// Parameter	Filter Disc/Ring	Amount of Screen/Board	Cubage of Groove/M3	Power of Installation/KW	Moving Power/KW	Mainframe（L×W×H/）/M
  TC-1	1	12	0.21	3.5	2.0	1.6×1.4×1.5
  TC-4	2	24	1.0	7.0	3.0	2.4×2.5×2.1
  TC-6	2	24	1.2	7.0	6.0	2.4×2.9×2.5
  TC-9	3	36	1.7	9.0	7.0	2.7×2.9×2.5
  TC-12	4	48	2.2	11.0	7.5	3.0×2.9×2.5
  TC-15	5	60	2.7	11.5	8.0	3.3×3.0×2.5
  TC-21	7	84	4.0	13.5	9.0	4.6×3.0×2.6
  TC-24	8	96	4.5	16.5	10.5	4.9×3.0×2.6
  TC-27	9	108	5.0	17.0	11.0	5.2×3.0×2.6
  TC-30	10	120	5.5	17.0	11.5	5.5×3.0×2.6
  TC-36	12	144	7.0	23.0	16.0	6.6×3.0×2.6
  TC-45	15	180	8.5	25.0	19.0	7.5×3.0×2.6
  TC-60	15	180	12.5	33.0	22.0	7.5×3.3×3.0
  TC-80	20	240	16.2	40.0	24.0	9.0×3.3×3.0
  TC-102	17	204	18.5	53.0	35.0	8.8×3.6×3.3
  TC-120	20	240	20	60.0	40.0	9.7×3.6×3.3
  TC-150	15	300	24	75.0	47.0	11.2×3.6×3.3

  Note：Any change of technical data shall not be advised additionally.
