LM-series Vertical Mill

Author: crusher_manufacturer March 21, 2014 0 Comments

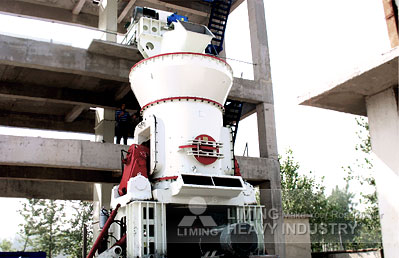

Introduction of LM-series Vertical Mill

LM-series vertical mill is one advanced mill, adopting top technology of domestic & abroad and based on many years’ mill experience. It can crush, dry, grind and classify the material, which is ideal grinding mill in pulverized coal production, power plant desulfurization, cement and slag plant. It is also the best choice for large sized non-metallic mineral ore grinding.

Features of LM-series Vertical Mill

1). Environmental protection.

It has low working noise and little dust. The grinded products will be filtered by high efficiency pulse dust collector, so the dust emission concentration will below the national environmental regulation (30mg/Nm).

2). Multiple classifier structure and wide range of adaptation.

There are two structure classifiers for LM vertical grinding mill; we can choose the most proper one according to different materials and different fineness requirements.

3). Mature and reliable hydraulic device.

The hydraulic device can adjust the roller pressure automatically according to different materials. So that the mill can always maintain the best condition, not only reduce the consumption of wasted effort, but also extend the life of roller sleeve and liner.

4). Automated electronic control system.

Our vertical mill has advanced electronic control system, enabling PLC control, centralized control and DCS control, which can meet different customers’ need.

5). Rocker and roller device

The roller device has a pair of self-aligning roller bearing, and the seal cage of bearings extend to the chassis, which can ensure the roller bearings dustproof.

Specifications of LM-series Vertical Mill

• Ore Mill



  Contents|Data//Model		LM130K	LM150K	LM170K	LM190K	LM220K	LM240K
  Disc Dia. (mm)		1300	1500	1700	1900	2200	2400
  Capacity (t/h)		10~30	13~40	18~57	23~72	36~114	41~128
  Output fineness	micron	170~45	170~45	170~45	170~45	170~45	170~45
  	mesh	80~325	80~325	80~325	80~325	80~325	80~325
  Product moisture		≤1%	≤1%	≤1%	≤1%	≤1%	≤1%
  Max.input size (mm)		<38	<40	<42	<45	<50	<55
  Best input moistrure		<4%	<4%	<4%	<4%	<4%	<4%
  input moistrure(drying required)		<15%	<15%	<15%	<15%	<15%	<15%
  Inlet air temperature (℃)		<350	<350	<350	<350	<350	<350
  Outlet air temperature (℃)		70~95	70~95	70~95	70~95	70~95	70~95
  Main mill power (KW)		185~220	250~280	355~400	450~500	710~800	800~900
  Dimension	Lmm	3500	4200	4700	8500	10200	11700
  	Wmm	3400	3900	4500	5600	6700	7700
  	Gmm	5800	7100	8300	8800	10600	12200
  Weight (t)		48	75	90	100	125	160



  Notes:
  1. Material should be with hardness less than 7 in Mohs.
  2. Hot air is only necessary if outlet moisture is required to be less than inlet moisture.
  3.When grinding mateiral that is difficult to grind, please use the largest power.

  Coal Mill



  Contents|Data//Model		LM130M	LM150M	LM170M	LM190M	LM220M	LM240M
  Disc Dia. (mm)		1300	1500	1700	1900	2200	2400
  Capacity (t/h)		10~15	16~22	20~28	26~35	35~45	40~50
  fineness (R0.08)		<15%	<15%	<15%	<15%	<15%	<15%
  Coal powder moisture		<1%	<1%	<1%	<1%	<1%	<1%
  Max.input size (mm)		<38	<40	<42	<45	<50	<55
  input moistrure		<15%	<15%	<15%	<15%	<15%	<15%
  Inlet air temperature (℃)		<350	<350	<350	<350	<350	<350
  Outlet air temperature (℃)		75~95	75~95	75~95	75~95	75~95	75~95
  Hardgrove index of raw coal (HGI)		>55	>55	>55	>55	>55	>55
  Main mill power (KW)		185	250	315	400	500	560
  Dimension	Lmm	3500	4200	4700	8500	10200	11700
  	Wmm	3400	3900	4500	5600	6700	7700
  	H mm	5800	7100	8300	8800	10600	12200
  Weight (t)		46	75	94	100	122	157



  Note：Any change of technical data shall not be advised additionally.
