T130X Superfine Grinding Mill

Introduction of T130X Superfine Grinding Mill

T130X Superfine Grinding Mill is designed by our experts on the basis of market research and statistical analysis of large number of domestic and abroad mill users’ recommendations. It is a new generation mill on the basis of the original patented product TGM Super Pressure Trapezium Mill.

T130X Superfine Grinding Mill is widely used in grinding and processing metallurgy, building materials, chemicals, mining and other fields of minerals. It is suitable for processing non-flammable and non-explosive materials with moisture less than 6%, such as feldspar, calcite, talc, barite, fluorite, rare earth, marble, ceramics, bauxite, manganese ore, iron ore, copper, rock phosphate, iron oxide red, slag, activated carbon, dolomite, granite, iron oxide yellow, fly ash, bituminous coal, coke, lignite, gold, red mud, clay, Kaolin, coke, coal gangue, porcelain clay, kyanite, fluorspar, bentonite, stream rhyolite, muddy green rock, leaf wax rock, shale, purple rock, basalt, gypsum, graphite, etc.

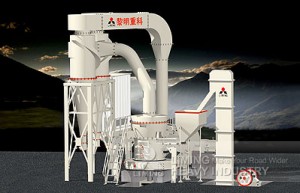

T130X Superfine Grinding Mill

Features of T130X Superfine Grinding Mill

1). High precision and high strength

The soft connection between main body and classifier avoids the grinding cavity vibration influence on them, which can improve the accuracy of classify. With high strength and anti-vibration crack ductile iron base, it has good impact resistance.

2). High yield and low energy consumption

The classifier has high-density blade, which can reduce air resistance and increase the powder fineness and yield. Frequency controlled classifier makes the adjustment more accurate, more energy-efficient and more automatic.

3).High efficiency powder collector

Bypass powder collector uses the same resistance program to avoid different output from the two powder collector. Also, the discharge ports of the two powder collectors and the filter are in the same straight line, so that to facilitate centralized collection of micro powder and to improve the powder collector efficiency.

4). Stable, reliable and safety

Make full use of the advantage of imitation German-made reducer to improve the stability of the device. The main body and reducer are connected by elastic sleeve pin coupling to improve the reliability of the device. The power transmitted from motor to reducer by V-belt, which will be conducive to overload protection and safety.

Specifications of T130X Superfine Grinding Mill

  • 1) Mainframe parameters



    Item Unit Specifications &Technical data
    Quantity of roller pcs 4
    Diameter of roller x Height mm Ф410×210
    Diameter of ring x Height mm Ф1300×210
    Rotation speed rmp 103
    Max. feeding size mm <30
    Output size mm 0.074—0.038
    Capacity t/h 4-13
    Weight t 18



    Note:
    (1) capacity in the table is referred to calcite, under the condition of 80% passing though.
    (2) Any change of parameters and shape shall be subject to the usage and maintenance manual instruction with delivery.

    2) Power of equipped systems



    Name Item Unit Specifications& Technical data
    Motor for mainframe Model Y280S-4
    Power kw 75
    Rotating speed rpm 1480
    Adjustable speed motor for classifier Model Y160L-4
    Power kw 15
    Rotating speed rpm 1460
    Motor for elevator Model Y100L2-4
    Power kw 3
    Rotating speed rpm 1430
    Motor for blower Model Y280M-4
    Power kw 90
    Rotating speed rpm 1480
    Motor for Jaw Crusher Jaw crusher Model PE 250×400
    Model Y180L-6
    Power kw 15
    Rotating speed rpm 970
    Electromagnetic vibration feeder Model GZ3F
    Power W 200



    Note:Any change of technical data shall not be advised additionally.
