YGM Series High Pressure Suspension Mill

Introduction of YGM Series High Pressure Suspension Mill

YGM Series High Pressure Suspension Mill is widely used in metallurgy, building materials, chemical, mining, highway construction, water conservancy and hydropower industries. It is suitable for processing non-flammable and non-explosive materials with moisture less than 6% and Mohs’ hardness less than 9.3. The fineness of the finished powder can be adjusted between 0.613mm to 0.033mm. The device can produce 30-80 mesh coarse powder by adding a special device.

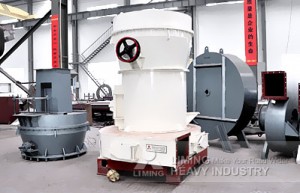

High Pressure Suspension mill

Features of YGM Series High Pressure Suspension Mill

1). Special structural design

The spring pressure device makes roller grinding pressure improve 800-1200kg and production increase by 20-30%.

2). Wide range of product size

The thickest finished size is 0.95mm (20 mesh); the general size is 0.033mm (425 mesh) and the finest is 0.013mm (1000 mesh).

3). Good environmental effects

The roller device adopts overlapping multi-stage sealing and the dust removal effect is full compliance with national dust emission standards.

Specifications of YGM Series High Pressure Suspension Mill

Model Piece of roller Size of the roller (mm) Size of the ring (mm) Feed size(mm) Fineness of powder (mm) Capacity (t/h) Motor power (kW) Weight (without motor)(t)
YGM65 3 Φ210×150 Φ650×150 ≤15 0.033-0.613 0.4-1.8 15 3.6
YGM75 3 Φ260×150 Φ780×150 ≤15 0.033-0.613 1-3 18.5 4.8
YGM85 3 Φ270×150 Φ830×150 ≤20 0.033-0.613 1.2-4 22 8
YGM95 4 Φ310×170 Φ950×170 ≤25 0.033-0.613 2.1-5.6 37 14
YGM130 5 Φ410×210 Φ1280×210 ≤30 0.033-0.613 2.5-9.5 75 24



Note:Any change of technical data shall not be advised additionally.
