HGM Micro Powder Grinding Mill

Introduction of HGM Micro Powder Grinding Mill

HGM micro powder grinding mill is suitable to process non-flammable and non-explosive materials with moisture less than 6% and Mohs’ hardness less than 9 such as calcite, chalk, calcium carbonate, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite , vermiculite , sepiolite, attapulgite , rectorite , diatomite , barite , gypsum, alunite , graphite, fluorite , phosphate rock, potassium ore , pumice, etc.

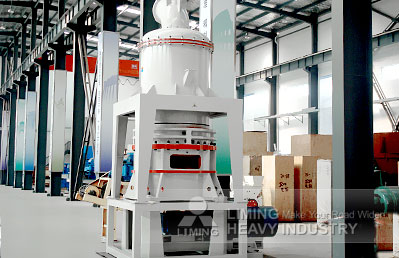

Micro Powder Grinding Mill

Features of HGM Micro Powder Grinding Mill

1). Low investment and high efficiency

Its investment cost is lower than jet mill, under the same product fineness and power consumption. The recovery period is short and yield is higher above 45%.

2).Low wear & tear and high fineness

Wearing parts are made of high quality wear-resistant materials and their life is more over one year. The fineness of finished powder can be D97, ≤5micron.

3).Safe, reliable and environmental

Without bearings and screws in the grinding chamber can avoid destroying the equipments by bearing failure and screw loosening. For excellent environmental effects, we equip efficient pulse dust collector, silencers and silencer housing to reduce dust and noise pollution.

Specifications of HGM Micro Powder Grinding Mill

  • Table 1



    Model HGM80 HGM100
    Roller number 21 27
    Ring Diameter (mm) Φ800 Φ1000
    Ring number 1×3 1×3
    Main unit speed(mm) 180-250 150-200
    Max. feeding size(mm) 10 10
    Final size (mesh) 325-2500 325-2500
    Capacity (kg/h) 400-4500 900-6500
    Overall dimension (m) 13.5×4×6.5 18×4.5×8.6



    Table 2



    Name Item Unit Specifications & Technical Data
    HGM80 HGM100
    Motor for main frame Model Y2-250M-4 Y2-315M-6
    Power kW 55 110
    Motor for separator Model Y2-180M-4 Y2-200M-4
    Power kW 18.5 30
    Motor for Elevator Model Y100L-4 Y112M-4
    Power kW 3 3
    Motor for Blower Model Y2-255M-2 Y2-280M-2
    Power kW 45 75
    Motor for Hammer Crusher Model PC400x300 PC600x400
    Power Kw 11 18.5
    Motor of Vibrating Feeder Model GZ1F GZ1F
    Power Kw 0.06 0.06
    Motor of discharge valve Model ZJD200 ZJD200
    Power Kw 0.75 0.75
    Impulse bag filter Model DMC120 DMC184
    Power 7.5



    Note:Any change of technical data shall not be advised additionally.
