TGM Super Pressure Trapezium Mill

Introduction of TGM Super Pressure Trapezium Mill

Our research team designed this TGM Super Pressure Trapezium Grinding Mill after years of painstaking research and development of innovation, according to feedbacks and advices from mill customers, and on the basis of high pressure hanging roller mill. Now we can offer users a new type, high efficiency and energy-saving superfine milling equipment.

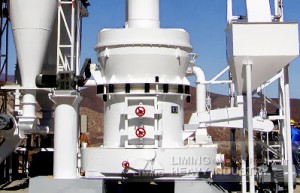

TGM Trapezium Mill

Features of TGM Super Pressure Trapezium Mill

1). Innovative design of grinding roller & grinding ring

Multi-level stepped roller and grinding ring designed to reduce the rate of decline of materials, extending the material compacted time and improve product fineness and yield

2). High-efficiency separator device

The high-density precision impeller device makes the output increased by more than 50 percent. The energy efficient centrifugal fan highly improves the working efficiency. And the convenient impeller adjusting device improves the accuracy of the finished product.

3). Unique elastic connection

We adopt elastic connection to link the host and classifier, which not only reduces vibration and noise, but also increases the life of equipment.

Specifications of TGM Super Pressure Trapezium Mill

  • Table 1


    Item//Model TGM100 TGM130 TGM160
    Roller piece 4 5 6
    Roller Diameter×Height(mm) Ф320×200 Ф400×240 Ф440×270
    Ring Inner Diameter×Height(mm) Ф980×200 Ф1280×240 Ф1600×270
    Speed Of Main frame (r/min) 1480 1480 1480
    Max. Input Size (mm) 25 30 35
    Product Size (mm) 1.6~0.045 fineness can reach to 0.038 1.6~0.045 fineness can reach to 0.038 1.6~0.045 fineness can reach to 0.038
    Capacity (t/h) 3~8.8 6~13 13~22
    Overall Dimension (mm) 7300×5365×8310 9200×7000×9645 12550×5700×8355
    Weight (t) 16 26.1 35


    Table 2


    Name Item Unit Specifications & Technical Data
    TGM100 TGM130 TGM160
    Motor for main frame Model Y225S-4 Y280S-4 Y315M1-4
    Power kW 37 75 132
    Rev. rpm 1480 1480 1480
    Motor for separator Model YCT200-4A YCT200-4B YCT205-4A
    Power kW 5.5 7.5 18.5
    Rev rpm 125~1250 125~1250 125~1250
    Motor for Elevator Model Y100L-4 Y100L-4 Y112M-4
    Power kW 3 3 4
    Rev rpm 1420 1420 1420
    Motor for Blower Model Y225S-4 Y280S-4 Y315M1-4
    Power kW 37 75 132
    REV rpm 1480 1480 1480
    Motor for Jaw Crusher Model PE 250×400 250×400 250×100
    Y180L-6 Y180L-6 Y200M-6
    Power KW 15 15 30
    REV rpm 970 970 970
    Electro-Magnetic Vibrating Feeder Model GZ2F GZ2F GZ3F
    Power W 150 150 200



    Note:Any change of technical data shall not be advised additionally.
