PE Series Jaw Crusher

Introduction of PE Jaw Crusher

The jaw crusher adopts the working principle that using the movable and fixed plate to mutual squeeze the material and this is the first process of the crushing line. Jaw crusher is ideally suitable as primary crusher for material with compression strength less than 320Mpa. Jaw crusher is of high crushing ratio, larger capacity, well-distributed final product size, simple structure, reliable performance, convenient maintenance, lower operation cost, etc, It is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

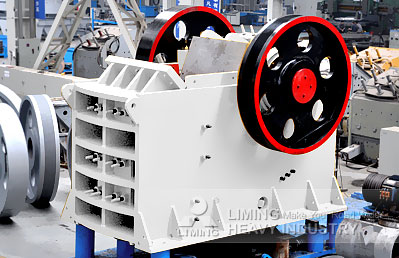

PE Jaw Crusher

Features of PE Jaw Crusher

1)      Deep cavity for crushing, and this optimized deep cavity can have no dead zone to crush, and the material input and the crushing efficiency is highly improved, and also the energy saving can be improved by 15% to 30% , and the whole system will save energy for one time.

2)      Strong bearing capacity: High stability of forging block processes the heavy eccentric shaft, ZGMn13 jaw movable plate, and fixed plate, the high-quality cast steel, jaw plate assembly, and the equipments can bear more capacity, and have high stability.

3)      Advanced technology: We learn and adopt the most advanced technology from other countries, and analysis the working condition by using the digitization technology, and also the inner equipments are with precise structure. All these technologies make sure that the machines work well and have a long working time.

4)      Centralized lubrication system: ingenious design of lubrication systems insure that the lubricating working time is short and also the process is convenient. So it is very convenient for the workers to maintain the lubricating system.

5)      Simple structure: This machine is designed with the basic principle of compound pendulum, so reduce all the unnecessary spare parts, the whole structure is simple, and easy to run and work well.

6)      The adjustment range of discharging is big: This kind of machine adopts the filling piece to adjust the discharge hole, so increase the flexibility of machine. Also can satisfy the different sizes requirements of clients.

7)      Low noise, and the dust equipment can meet the Environment Requirements Standards, at the same time, the dust-clearing equipments can work with this machine.

Specifications of Jaw Crusher:

Model Max. Feeding Size (mm) Adjustable Discharge opening (mm) Capacity (t/h) Motor Power (kW) Overall Dimensions (mm) Weight (t)
PE250×400 200 20-60 5-20 15 1150×1275×1240 2.8
PE250x1000 210 15-50 15-50 30 2790x2670x1380 6.5
PE400×600 350 40-100 15-60 30 1700×1732×1653 6.5
PE500×750 425 50-100 50-100 55 2035×1921×2000 10.3
PE600×900 500 65-160 60-130 75 2290×2206×2370 15.5
PE750×1060 630 80-140 110-250 110 2620×2302×3110 26.7
PE900×1200 750 100-200 160-380 130 3789×2826×3025 51
PE1000×1200 850 200-300 315-550 130 3889×2826×3025 56
PE1200×1500 1020 150-350 400-800 200 4200×3750×3820 88


Note:Any change of technical data shall not be advised additionally.
