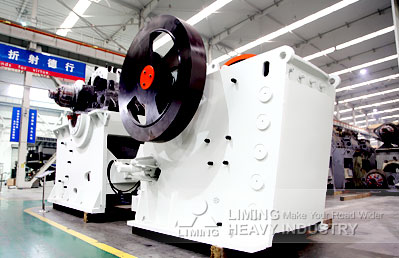

European Type Jaw Crusher

Author: crusher_manufacturer March 21, 2014 0 Comments

Introduction of European Type Jaw Crusher
PEW jaw crusher (European Type Jaw Crusher) is most suitable for compression strength not more than 280Mpa ore, rock, slag, etc. The largest block of the material to be broken is not greater than the required technical parameters. It is widely used in metallurgy, mining, chemical, cement, construction, fireproofing, ceramics and other industrial sectors as secondary and tertiary crushing various mid-hard ores and rocks, etc. Henan Liming Heavy Industry Science & Technology Co., Ltd. is the leading enterprise of rock & mineral processing equipment in the world. Since the end of the 20th century, we have installed more than 100,000 crushing plants all over the world. Nowadays, pew European type jaw crusher has already become the most popular equipment in the world without controversy. When considering crush efficiently hard and strong abrasive materials, the most advanced international crushing technology and manufacturing level PEW series jaw crusher should be first adopted.

Features of European Type Jaw Crusher
1) World-level manufacturing technology is adopted, and highest-level raw material is used. Such as: movable jaw crusher assembly is made from cast piece with high-quality, heavy eccentric shaft is processed by forged mold. All of these make jaw crusher lengthens life and extremely reliable
2) Finite element analysis technology is adopted, and integral cast steel bearing matches well with the crusher frame, at the same time, radial strength of bearing seat is highly strengthened, which makes the crusher much stronger.
3) Crusher chamber adopts “V” structure; discharge part is installed wedge block, which makes discharge much simpler, safer and faster.
4) The larger, more durable bearing and tooth-shape side plate make equipment have higher load, enhance the capacity and lengthen the life.

Specifications of European Type Jaw Crusher

• Model	Max. Feeding Size (mm)	Adjustable Discharge opening (mm)	Capacity (t/h)	Motor Power (kW)	Overall Dimensions (mm)	Weight (t)
  PEW200×1300	150	10-30	12-35	30	1320x2150x1175	6
  PEW250x1000	220	20-40	15-50	30	1400x1850x1310	5.6
  PEW250x1200	220	20-40	20-50	37	1450x2150x1175	6
  PEW400x600	350	35-85	15-70	37	1920x1460x1840	6.5
  PEW860	720	100-225	200-500	132	3300x2320x3120	32
  PEW1100	940	150-275	300-650	185	4140x2660x3560	59.2

  Notice:
  1. Any change of European Type Jaw Crusher technical data shall not be advised additionally.
  2. The model PEW860 and PEW1100 with lubrication station and hydraulic adjustment station.

  Note：Any change of technical data shall not be advised additionally.
