Raymond Grinding Mill

Introduction of Raymond Grinding Mill

Raymond grinding mill is widely used in the grinding process metallurgy, building materials, chemicals, mining and minerals. It is suitable for processing non-flammable and non-explosive materials with moisture less than 6% and Mohs’ hardness less than 7, such as gypsum , talc, calcite , limestone , marble , feldspar , barite, dolomite , granite, kaolin , stone , bauxite , iron oxide red , iron ore and so on.

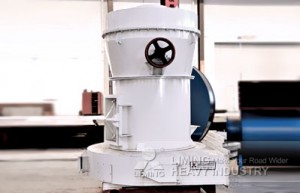

Raymond Mill

Features of Raymond Grinding Mill

1). Compact system and high through sieve rate

The whole system is a tridimensional structure and needs small floor space. From rough processing of raw materials, delivery, grinding and final packaging, it can be an independent production system. The finished powder fineness is even and the through sieve rate can reach 99%.

2).Easy to control and maintain

Using the centralized control electrical systems, the workshop can basically achieve unmanned operation. Electromagnetic vibrating feeder makes feeding continuously, which is easy to fuel saving, easy to adjust and maintain.

3). Smooth transmission and high abrasion resistance

The transmission device adopts airtight gearing and pulley gear box to make sure smooth transmission and reliable operation.

Specifications of Raymond Grinding Mill

Model 3R2115 3R2615 3R2715 3R3016 4R3216
Roller Number 3 3 3 3 4
Diameter (mm) 210 260 270 300 320
Height (mm) 150 150 150 160 160
Ring Inside diameter (mm) 630 780 830 880 970
Height (mm) 150 150 150 160 160
Maximum feed size (mm) 15 15-20 15-20 15-20 20-25
Output size (mm) 0.044-0.165 0.044-0.165 0.044-0.165 0.044-0.165 0.044-0.165
Power of main frame (kW) 15 18.5 22 30 37
Fineness of final product (mm) 0.165 capacity (t/h) 1.2-1.8 1.8-2.5 2.3-2.8 2.6-3.2 3.2-4.5
0.075 0.6-1.2 1.2-1.8 1.8-2.3 1.9-2.6 2.4-3.1
0.044 0.6-1.0 0.8-1.2 0.9-1.7 1-1.9 1.8-2.5



Note:Any change of technical data shall not be advised additionally.
