European Impact Crusher

Author: crusher_manufacturer March 21, 2014 0 Comments

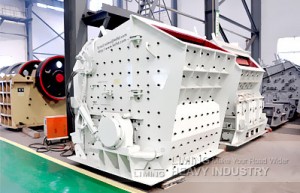

Introduction of European Impact Crusher

European impact crusher is mainly used in metallurgy, mining, cement, chemicals, refractories and ceramics and other industrial fields, and is widely used in the areas of highway construction, water conservancy projects, building rubble, sand processing mechanism, and is suitable for crushing all kinds of soft and medium hard ore into coarse, medium, fine sizes. European impact crusher is a new generation product which Liming Heavy Industry uses the latest technology with high quality.

Features of European Impact Crusher

1. Advanced technology, optimization design

We use world-class manufacturing processes, selection of the most high-end production of materials. Heavy-duty rotor design, strict means testing and analysis techniques to ensure the quality of the rotor

2. Unique structure, stable and reliable

Using integrated steel bearing structure, operation more robust security， also equipped with ptional greater bearing specifications, higher carrying capacity. Unique hammer fixtures, and higher reliability.

3. Semi-automated, saving time and effort

Semi-automatic adjustment device and open-top device comes, can quickly complete the replacement of wearing parts, reducing downtime and maintenance time, saving manpower to operate, increasing the safety factor.

Specifications of European Impact Crusher

• Table 1: for crusher with three crushing chambers



  Model	Rotor size (mm)	Feed opening (mm)	Max. Feed size (mm)	capacity (t/h)	Power (kW)	weight (t)	Overall dimension (mm)
  PFW1210Ⅲ	Ф1150×960	570×990	250	70-120	110	15	2550×1870×2100
  PFW1214Ⅲ	Ф1150×1400	570×1430	250	90-170	132	19	2550×2310×2100
  PFW1315Ⅲ	Ф1300×1500	625×1530	300	180-270	160	25	2960×2570×2380
  PFW1318Ⅲ	Ф1300×1800	625×1830	300	220-300	200	30	2960×2870×2380
  PFW1415Ⅲ	Ф1400×1500	800×1530	350	280-350	200	33	3120x2650x2660



  Table 2: for crusher with two crushing chambers



  Model	Rotor size (mm)	Feed opening (mm)	Max. Feed size (mm)	capacity (t/h)	Power (kW)	weight (t)	Overall dimension (mm)
  PFW1210Ⅱ	Ф1150×960	1100×1030	400	90-160	110	17	2400x1870x2550
  PFW1210Ⅱ	Ф1150×1400	1100×1430	500	130-200	132	22	2400x2310x2550
  PFW1315Ⅱ	Ф1300×1500	1200×1530	600	180-320	160	29	2700x2570x2800
  PFW1318Ⅱ	Ф1300×1800	1200×1830	700	240-400	200	34	27002870×2800
  PFW1415Ⅱ	Ф1400×1500	1300×1530	700	300-480	200	38	2900x2700x3000





  Note：Any change of technical data shall not be advised additionally.
