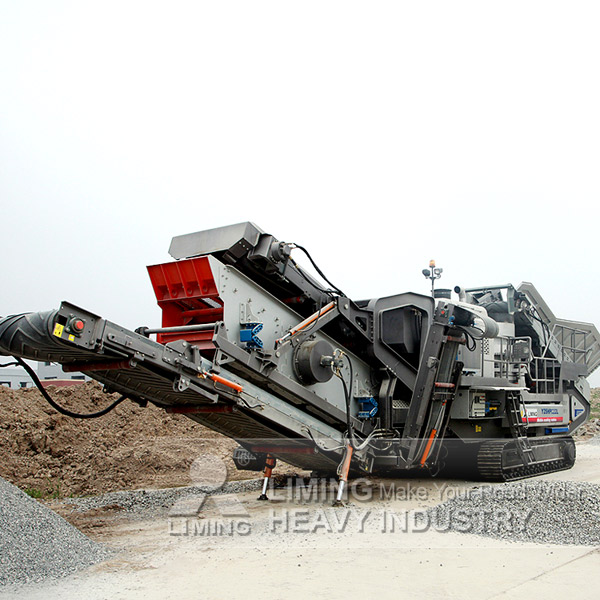

Crawler Mobile Crushing Plant
The Crawler Type Mobile Processing Plants from Liming Heavy Industry(Shanghai), also called track-mounted mobile crushing plants offer the ultimate in productivity, mobility, versatility and adaptability. With numerous value-added standard features, a hopper full of performance-enhancing options, and the versatility of unit-to-unit compatibility, you get maximum capability with minimum effort.
Representing the only line of track-mounted plants designed, manufactured and supported in the China, backed by authorized dealers worldwide, the Liming Heavy Industry(Shanghai) Plants are truly Your One Source for both aggregate and recycling applications. Get ready to discover how you can Make Liming Heavy Industry(Shanghai) on your competition with maximum capability from the Crawler Type Mobile Crushing Plant(Track Mounted Mobile Crushing Plant)
Specifications of Crawler type mobile crushing plant:
-

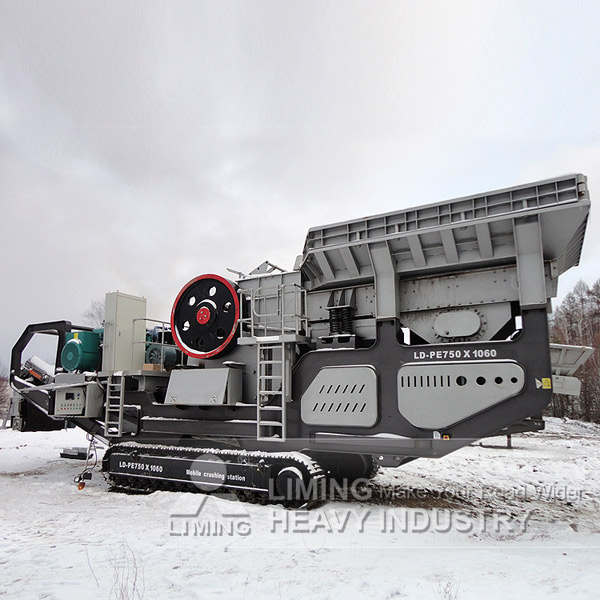

Crawler Type Mobile Jaw Crusher / Impact Crusher
Specifications: Technical Data//Model YG935E69L YG935FW1214ⅡL YG1138E71L YG1138FW315ⅡL YG1138EW86L Vibrating Feeder GZD-960×3500 GZD-960×3500 GZD-1100×3800 GZD-1100×3800 GZD-1100×3800 Crusher PE600×900 PFW-1214Ⅱ PE750×1060 PFW-1315Ⅱ PEW860 Main Belt Conveyor B800×8.5M B800×8.5M B1000×9M B1000×9M B1000×9M Discharging Height of Main Belt Conveyor (mm) 3200 3200 3500 3500 3500 Side-opening Belt Conveyor (Optional) B450×3M B450×3.2M B500×3.5M B500×3.5M B500×3.5M Discharging Height of Side-opening Belt Conveyor (mm) 2800 2800 3100 3000 3100 Power of Genset (kW) 180 250 200 300 250 Transportation Length (mm) 11900 11900 13300 13300 14200 Transportation Width (mm) 3100 3100 3100 3100 3300 Transportation Height (mm) 3650 3650 4500 4500 5000 Transportation Weight (t) 43.5 50 59 59 67 Working Length (mm) 12100 12100 13500 13500 15200 Working Width (mm) 3100 3100 3100 3100 3300 Working Height (mm) 4100 4100 5100 4800 5500 Any change of technical data shall not be advised additionally.
Standard Crawler Type Cone Crusher Plant Specifications:
Specifications: Model YCS160L YHP220L Equipment Configuration Crusher Cs160 Hp220 Belt Type Vibrating Feeder GLD-12×4/15 GLD-15×4/15 Volume of Upper Hopper 5 5 Height of Final Products Receiving 3100 3100 Model of Main Belt Conveyor B1000×9M B1000×9M Genset (Kw) 270 330 Transportation Length (mm) 12500 12500 Transportation Width (mm) 3240 3240 Working Height (mm) 3900 3900 Working Weight (t) 36.2 41.4 Any change of technical data shall not be advised additionally.
Standard Crawler Type Mobile Screening Plant
Classification of Items A Type Dual Power Crawler Type Mobile Feeding and Screening Plant B Type Dual Power Crawler Type Mobile Sorting and Screening Plant Model Y3S154GL Y3S184GL Y3S186GL Y3S154BL Y3S184BL Y3S186BL Vibrating Feeder 3YZS1548 3YZS1848 3YZS1860 3YZS1548 3YZS1848 3YZS1860 Feeding Hopper Belt Conveyor Feeding Sorting Conveyor Feeding Belt Conveyor Feeding Belt Conveyor B1000×4M B1000×4M B1200×4.5M B1200×3M B1200×3M B1200×3M Main Belt Conveyor B800×5M B1000×5M B1000×5M B1000×8M B1200×8M B1200×9M Belt Conveyor Under Vibrating Screen B800×4.5M B1000×4.5M B1000×5.5M B800×7M B1000×7M B1000×8M Left Side-opening Belt Conveyor B500×7.3M B500×7.3M B650×7.3M B500×7.3M B500×7.3M B650×7.3M Right Side-opening Belt Conveyor 1 B500×7.3M B500×7.3M B650×7.3M B500×7.3M B500×7.3M B650×7.3M Right Side-opening Belt Conveyor 2 B500×7.3M B500×7.3M B650×7.3M B500×7.3M B500×7.3M B650×7.3M Genset (kW) 120 120 120 120 120 120 Transportation Length (mm) 12300 12300 13500 12000 12000 13200 Transportation Width (mm) 2700 2920 2920 2900 3150 3150 Working Height (mm) 3900 3900 3900 3600 3600 3700 Working Weight (t) 28 30 34 28 32 35 Note:1.There are 6 models with vibrating screen of 3 decks and 6 models with vibrating screen of 2 decks.
2.When the vibrating screen with 3 decks is replaced by vibrating screen with 2 decks, Right Side-opening Belt Conveyor 2 shall be removed. The rest of the items remain the same.Note:Any change of technical data shall not be advised additionally.
