Kue-Ken Jaw Crushers
Kue-Ken Jaw Crusher Advantages:
Our Kue-Ken Jaw Crushers have a double toggle action to give the maximum mechanical advantage to the eccentric. Crushing on the downward stroke enables a much lighter pitman and toggles to be employed, so reducing inertia and enabing higher operating speeds and greater throughput to be achieved.

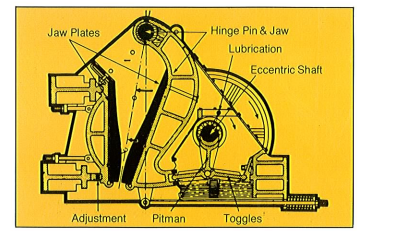

Key Features of Kue-Ken Jaw Crusher:
1. Hinge pin on crushing chamber centre-line for crushing without rubbing. Large bearings and integral lubrication.
2. Wide entry throat ensures easy feeding to crushing chamber.
3. Cast steel swing jaw is balanced to avoid power losses through lifting on crushing stroke.
4. A light small diameter flywheel is all that is necessary with the low inertia of the mechanism.
5. Operating mechanism is totally enclosed for maximum life and minimum maintenance.
6. Double toggles provide maximum leverage to long stroke eccentric. Pull-back and lifter springs automatically compensate for wear.
7. Light-weight pitman is always in the compression and bears directly on the underside of the eccentric.
8. All adjustments are carried out on the fixed jaw to avoid disturbing the crushing geometry.
For the price and detailed specifications, please send email to: limingjqs@gmail.com
